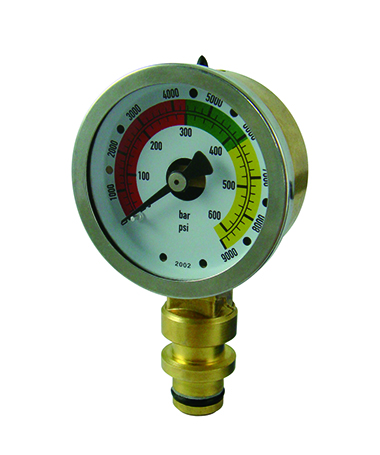

1203A OIL FILLED PRESSURE GAUGE
| Designation | Stainless steel case, crimped ring, liquid fillable |
| Model | 1203A |
| Applications | Adverse service conditions where pulsation or vibration exists |
| Nominal size: (mm) | Ø(63, 100) |
| Scale ranges | – 1 to 400 bar |
| Accuracy class | 1.6 Ø (63), 1 Ø (100) |
| Pressure connection | 1/4″ Ø(63) 1/2″ Ø(100) |
| Wetted parts | Copper alloy |
| Case material | Stainless Steel, crimped ring w/groove on case |
| Window | Polycarbonate |
| IP class | IP 65 |
| Options/notes | Groove on case, prepared for back flange Lower, back entry, panel mount or surface mount |
