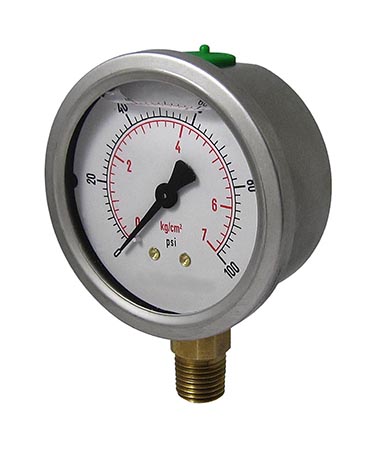

1200 LIQUID FILLED PRESSURE GAUGE
| Specification | Parameters |
| Regular Specification | 1.5″,2″,2.5″,4″ |
| Connection Thread | 1.5 “,connector thread 1/8 |
| 2″,2.5″, connector thread 1/4 | |
| 4″, connector thread 1/2 | |
| Pressure Range | -1-0，0-400 bar |
|
Pressure range of compound
|
-1-24 bar |
| Environmental temperature | -40-60℃ |
| Material | 304 Stainless steel case and crimped ring, polycarbonate window. Copper bourdon tube and connection, brass movement, |
| Standard of joint thread | NPT or BSP |
| Liquid filled medium | Glycerin or silicone oil
|
